Sapphire Boiler Range
Sapphire External Heat Only
Combi Boiler

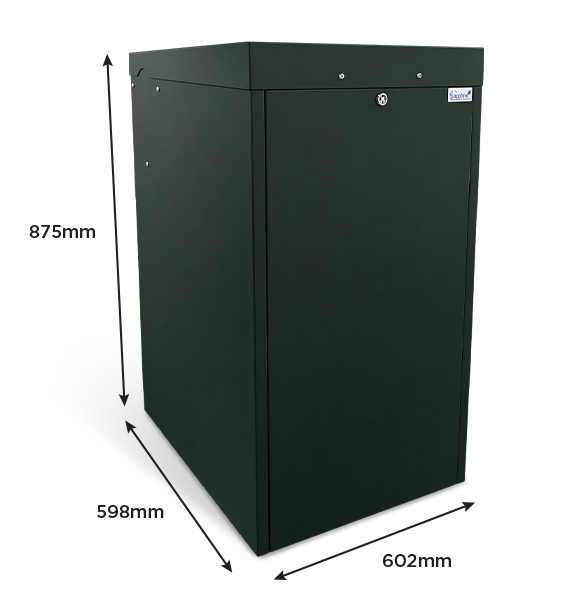

Sapphire External Combi boilers are designed to deliver high-efficiency heating and hot water for properties where internal space is limited. Encased in a durable, weather-resistant housing, these units provide reliable outdoor performance while incorporating the same advanced modulating technology and ultra-low NOx emissions as the internal range.
Engineered for efficiency and quiet operation, the Sapphire External Combi range includes integrated frost protection as standard. It offers a dependable and space-saving solution for new outdoor installations, as well as an ideal upgrade for older oil-fired systems.
Features and Benefits
- Fully modulating and OpenTherm certified
- 25-year heat exchanger warranty and 5-year warranty on all non-serviceable components (T&Cs apply)
- Output range from 6–32 kW
- Dual output functionality:
- Output 1 – Central Heating (CH) kW
- Output 2 – Domestic Hot Water (DHW) kW
- Compact, space-saving outdoor design with a robust, weather-resistant casing
- Multiple flue options available (low level or high level)
- Three-stage frost protection (no frost, pre-frost, and frost)
- Direct DHW heating without the need for a thermal store
- Acoustic dampening for low noise operation—ideal for installations near windows or patios
- Low NOx emissions
- Fully compatible with HVO fuel
- Integrated touchscreen for simple commissioning
Heat only - external
|
EOGB Sapphire 6-32 kW |
||
|---|---|---|
| Water Content | Litre | 26.5 |
| Weight (Dry) Heat Exchanger | Kg | 40 |
| Weight (Dry) Overall | Kg | 88 |
| Max, Heat output (Kerosene) | kW | 32 |
| Min, Heat output | kW | 6 |
| Flow connection | mm | 22 |
| Return connection | mm | 22 |
| Condensate connection | mm | 22 |
| Flue diameter | mm | 81 |
| Maximum static head | m | 7.2 |
| Minimum circulating head | m | 0.5 |
| Boiler thermostat range | °C | Variable |
| Primary limit thermostat (safety shut off temp) | °C | 95 ± 3 |
| Secondary limit thermostat (safety shut off temp) | °C | 110 ± 3 |
| Maximum hearth temperature | °C | 100 |
| Electrical supply | Volts | 1ph-230-50Hz |
| Total consumption | kWh | 0.66 |
| Oil connection | 2 × 1/4" BSP F | |
| Max operating pressure - sealed sysrems | bar | 3 |
