Heat Pump Range
High Temperature
Industrial Heat Pumps
A unique solution for heating, cooling and hot water production with assured performance all year round.
This range is available for larger outputs, with power outputs between 40kW and 50kW in heating mode.
All units are equipped with a wired control for complete control of the heat pump, model e-LITE.
Designed to generate extremely high-water temperatures even in the harshest conditions.
Features and Benefits
- Refrigeration power: 28.9 - 34.1kW
- Thermal Power: 40.1 - 50kW
- Energy class in cold: A++
- Energy class in heat: A++
- Refrigerant gas: R290
- Operating range: -20/+46°C

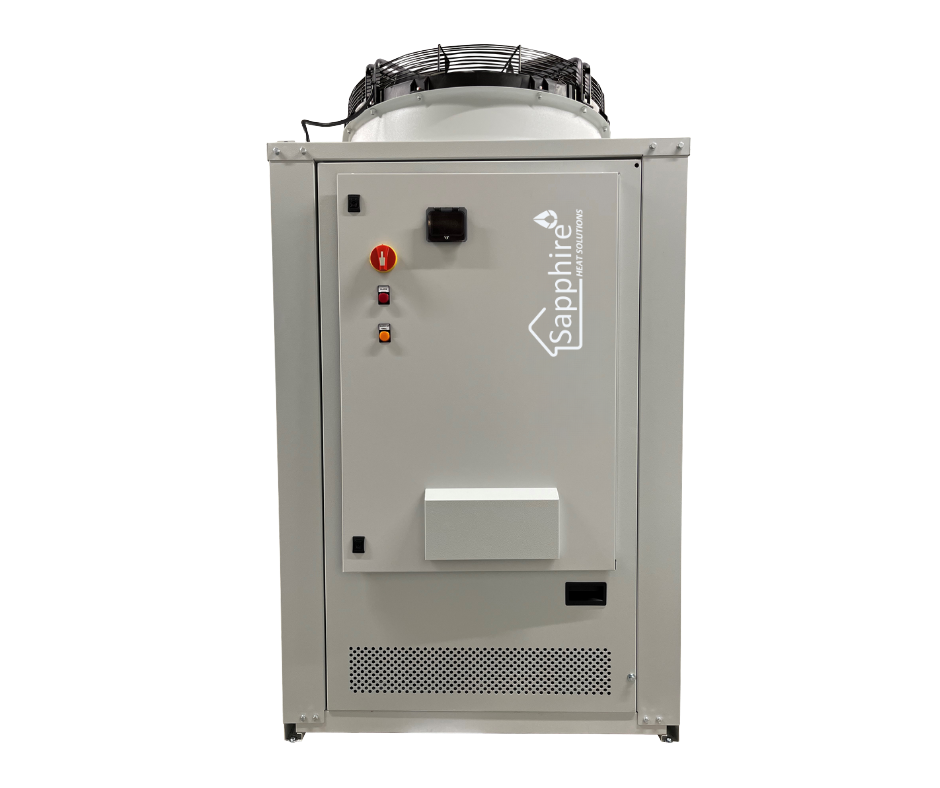

Sapphire Industrial Heat Pumps 40 – 50kW
| Model |
Nom. Output (kW) |
Phase |
SCOP @ 35°C |
SCOP @ 45°C |
SCOP @ 55°C |
SCOP @ 65°C |
Max Flow Temp. (°C) |
Refrigerant |
Dimensions (W × D × H) |
|---|---|---|---|---|---|---|---|---|---|
| SPH290 40kW | 48.8kW | Three | 4.09 | 3.77* | 3.44 | 2.98 | 78 | R290 | 1850 × 1110 × 1920 |
| SPH290 50kW | 48.8kW | Three | 4.2 | 3.77* | 3.34 | 2.87 | 78 | R290 | 1850 × 1110 × 1920 |
