Heat Pump Range
Domestic
Heat Pumps
A unique solution for heating, cooling, and hot water production with reliable performance throughout the year.

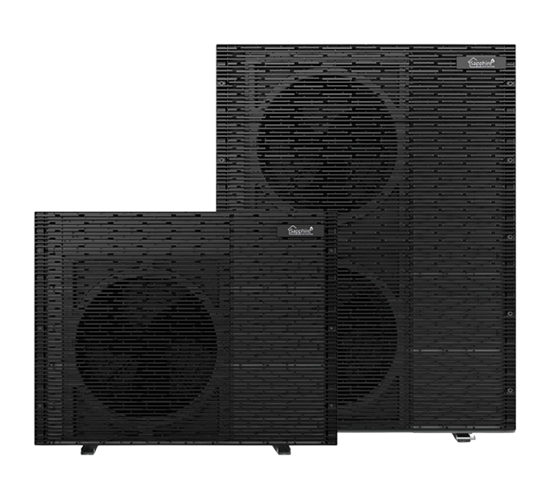

Our SHP290 heat pumps are engineered to deliver exceptionally high-water temperatures, even in the most demanding conditions, with a maximum flow temperature of 78°C.
The SHP290 domestic range is available in five sizes, offering heating capacities from 6kW to 18kW. Suitable for both new-build and retrofit projects, these units can be integrated with all types of heat emitters.
Utilising R290 technology, the system operates without the need for fuel gas, providing an efficient and environmentally responsible solution with no direct CO₂ emissions.
Features and Benefits
- Refrigeration power: 5.2-18kW
- Thermal Power: 6.16-18kW
- Energy class in cold: A++
- Energy class in heat: A+++
- Refrigerant gas: R290
- Operating range: -20/+46°C
Sapphire Domestic Heat Pumps 6 – 18kW
| Model |
Nom. Output (kW) |
Phase |
SCOP @ 35°C |
SCOP @ 45°C |
SCOP @ 55°C |
SCOP @ 65°C |
Max Flow Temp. (°C) |
Refrigerant |
Dimensions (W × D × H) |
|---|---|---|---|---|---|---|---|---|---|
| SPH290 6kW | 4.64kW | Single | 4.42 | 3.86 | 3.23 | 2.98 | 75 | R290 | 1105 × 490 × 870 |
| SPH290 9kW | 7.93kW | Single | 4.57 | 4.13 | 3.79 | 3.24 | 75 | R290 | 1105 × 490 × 870 |
| SPH290 12kW | 9.02kW | Single | 4.48 | 3.89 | 3.38 | 3.04 | 75 | R290 | 1105 × 490 × 1440 |
| SPH290 15kW | 12.81kW | Three | 4.6 | 4.04 | 3.58 | 3.28 | 75 | R290 | 1105 × 490 × 1440 |
| SPH290 18kW | 13.21kW | Three | 4.52 | 3.97 | 3.53 | 3.2 | 75 | R290 | 1105 × 490 × 1440 |
