Heat Pump Range
Commercial

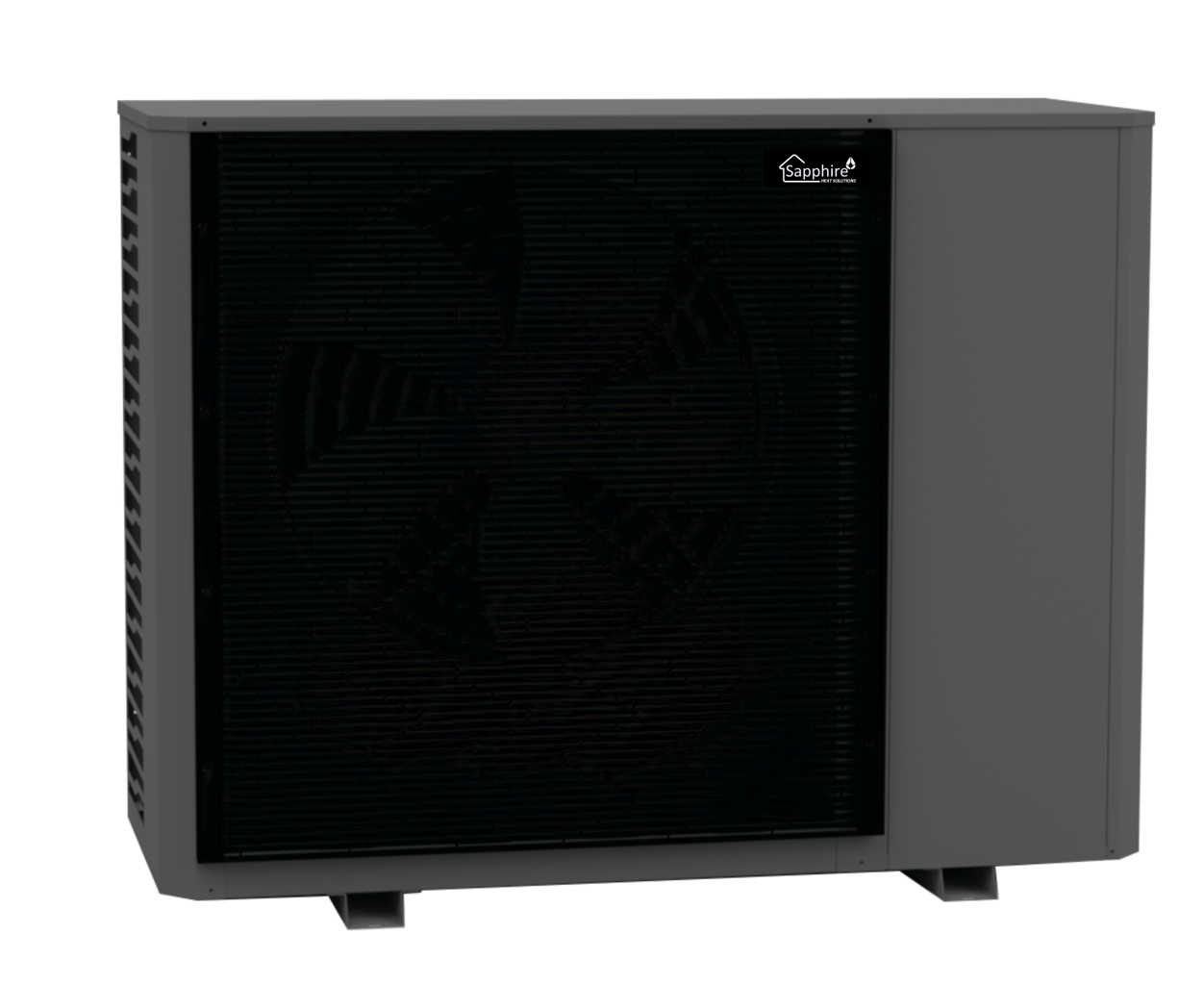

Heat Pumps
A unique solution for heating, cooling, and hot water production with reliable performance throughout the year.
Our SHP290 heat pumps are engineered to deliver exceptionally high-water temperatures, even in the most demanding conditions, with a maximum flow temperature of 78°C.
This SHP290 range is available in four sizes, offering heating capacities from 21kW to 27kW. Suitable for both new-build and retrofit projects, these units can be integrated with all types of heat emitters.
Utilising R290 technology, the system operates without the need for fuel gas, providing an efficient and environmentally responsible solution with no direct CO₂ emissions.
Features and Benefits
- Refrigeration power: 5.2-18kW
- Thermal Power: 6.16-18kW
- Energy class in cold: A++
- Energy class in heat: A+++
- Refrigerant gas: R290
- Operating range: -20/+46°C
Sapphire Commercial Heat Pumps 21 – 27kW
| Model |
Nom. Output (kW) |
Phase |
SCOP @ 35°C |
SCOP @ 45°C |
SCOP @ 55°C |
SCOP @ 65°C |
Max Flow Temp. (°C) |
Refrigerant |
Dimensions (W × D × H) |
|---|---|---|---|---|---|---|---|---|---|
| SPH290 21kW | 18.4kW | Three | 4.72 | 4.07 | 3.26 | 3.15 | 78 | R290 | 1600 × 680 × 1315 |
| SPH290 23kW | 20.1kW | Three | 4.58 | 4.01 | 3.58 | 3.15 | 78 | R290 | 1600 × 680 × 1315 |
| SPH290 25kW | 21.8kW | Three | 4.3 | 3.82 | 3.56 | 3.11 | 78 | R290 | 1600 × 680 × 1315 |
| SPH290 27kW | 23.2kW | Three | 4.33 | 3.84 | 3.48 | 3.05 | 78 | R290 | 1600 × 680 × 1315 |
