Heat Pump Range
Air Source
Heat & Cooling Pumps
A unique solution for heating, cooling, and hot water production with reliable performance throughout the year.

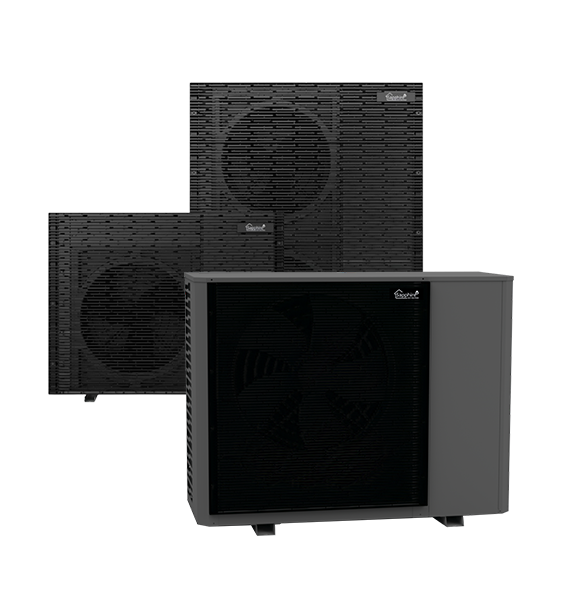

Our SHP290 heat pumps are engineered to deliver exceptionally high-water temperatures, even in the most demanding conditions, with a maximum flow temperature of 78°C.
The SHP290 domestic range is available in nine sizes, offering heating capacities from 6kW to 27kW. Suitable for both new-build and retrofit projects, these units can be integrated with all types of heat emitters.
We also have larger commercial & industrial variants available, with outputs ranging between 30 – 50kW.
Utilising R290 technology, the system operates without the need for fuel gas, providing an efficient and environmentally responsible solution with no direct CO₂ emissions.
Features and Benefits
- Refrigeration power: 5.2-18kW
- Thermal Power: 6.16-18kW
- Energy class in cold: A++
- Energy class in heat: A+++
- Refrigerant gas: R290
- Operating range: -20/+46°C
Sapphire Air Source Heat Pumps 6 – 27kW
| Model |
Nom. Output (kW) |
Phase |
SCOP @ 35°C |
SCOP @ 45°C |
SCOP @ 55°C |
SCOP @ 65°C |
Max Flow Temp. (°C) |
Refrigerant |
Dimensions (W × D × H) |
|---|---|---|---|---|---|---|---|---|---|
| SPH290 6kW | 4.64 | Single | 4.42 | 3.86 | 3.23 | 2.98 | 75 | R290 | 1105 × 490 × 870 |
| SPH290 9kW | 7.93 | Single | 4.57 | 4.13 | 3.79 | 3.24 | 75 | R290 | 1105 × 490 × 870 |
| SPH290 12kW | 9.02 | Single | 4.48 | 3.89 | 3.38 | 3.04 | 75 | R290 | 1105 × 490 × 1440 |
| SPH290 15kW | 12.81 | Three | 4.6 | 4.04 | 3.58 | 3.28 | 75 | R290 | 1105 × 490 × 1440 |
| SPH290 18kW | 13.21 | Three | 4.52 | 3.97 | 3.53 | 3.2 | 75 | R290 | 1105 × 490 × 1440 |
| SPH290 21kW | 18.4 | Three | 4.72 | 4.07 | 3.6 | 3.15 | 78 | R290 | 1600 × 680 × 1315 |
| SPH290 23kW | 20.1 | Three | 4.58 | 4.01 | 3.58 | 3.15 | 78 | R290 | 1600 × 680 × 1315 |
| SPH290 25kW | 21.8 | Three | 4.3 | 3.82 | 3.56 | 3.11 | 78 | R290 | 1600 × 680 × 1315 |
| SPH290 27kW | 23.2 | Three | 4.33 | 3.84 | 3.48 | 3.05 | 78 | R290 | 1600 × 680 × 1315 |
