The Rectory
A modern heating upgrade transformed this property into a warmer, more comfortable living space
The new heating solution involved replacing an old boiler with two fully modulating Sapphire boilers at The Rectory in Essex.
Situation
The Rectory now a fantastic family residence needed a more efficient and controllable heating system. The old 60KW standard efficiency non-condensing boiler had very limited control without remote thermostatic control, it was corroded and the conventional chimney/flue had signs of leakage back into the basement.
Solution

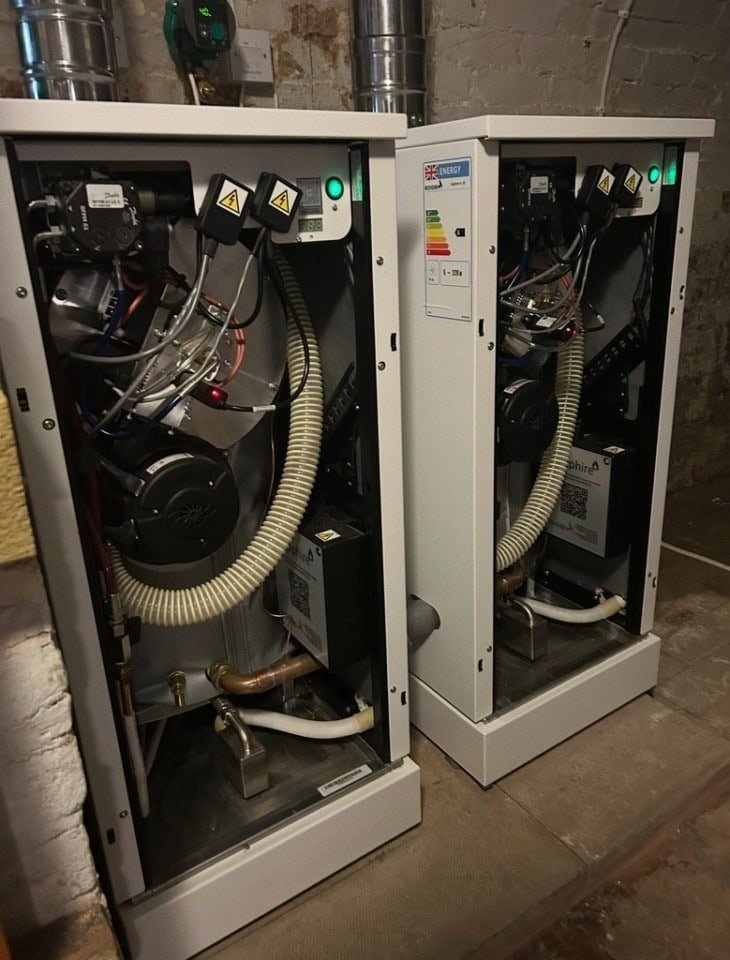

After a site survey it was deemed that two fully modulating Sapphire boilers where the order of the day!
The contract was undertaken by one of Sapphire heat solution leading agents Barton Oil Burners services. It was decided that the boilers should be fitted onto a plate heat exchanger to protect the 25 year Sapphire backed warranty provided. At the same time the domestic hot water and all the associated pipework and controls were replaced.
Benefits
Robert Butler of Barton Oil stated:
"This was a great installation to be involved in, we love the Sapphire boiler and always our first choice. The energy saving through the modulation is very good, and to top that you have a fully stainless steel heat exchanger, rather than cheaper mild steel gear that’s out there that eventually rots away”
Homeowner James Sinclair stated:
"Martin Cooke from Sapphire Boilers came out and did the full survey and we discussed the options, and we are really pleased we went this this option, the house is warmer than ever and we have a safe and controllable heating system. One massive bonus, I don’t have to keep going down to the cellar to turn the heating on!"
Technical
The Sapphire boiler is a modern fully modulating liquid fuel boiler, delivers the best energy efficiency and carbon emission reduction.
- Heat Output: 6-32 KW
- Total Consumption: 0.66 kWh
- Efficiency Rating: 98% (ErP A-rated)
- Water Content: 62 litres
- Fuel Type: Oil (compatible with standard heating oil and biofuel blends)
- Heat Exchanger: Stainless Steel (high durability and corrosion resistance)
- Burner Type: Low-NOx, modulating burner
- Control System: Integrated Smart Controls with Wi-Fi connectivity, allowing remote monitoring and adjustment via a mobile app, plus option to use standard controls.
- Emissions: NOx emissions below 30 mg/kWh
- Dimensions: 425mm (W) x 860mm (H)
- Weight: 88 kg
- Warranty: 25 years on heat exchanger
- Maximum hearth temperature - 100 °C
- Maintenance: Low maintenance design with easy access for service and cleaning
- Additional Features:
- OpenTherm thermostat
- Multi-zone heating capability
- Digital flame monitoring
- Automatic fault diagnosis
